Blue Clover PLT Demo V2 nRF52832

Overview

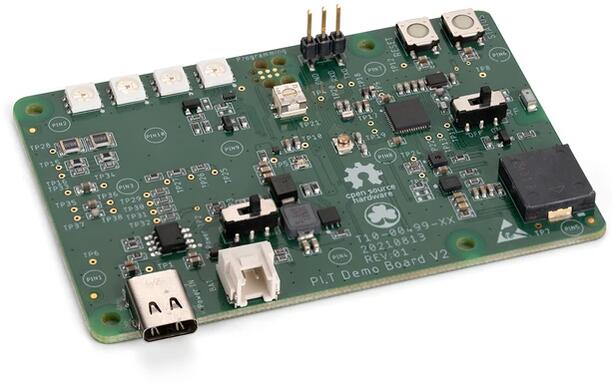

The Blue Clover PLT Demo V2 is an open source (OSWHA certified) hardware product, featuring the Nordic Semiconductor nRF52832 ARM Cortex-M4F MCU and several useful external peripherals.

The Nordic Semiconductor nRF52832 ARM Cortex-M4F MCU features the following:

  • ADC

  • CLOCK

  • FLASH

  • GPIO

  • I2C

  • MPU

  • NVIC

  • PWM

  • RADIO (Bluetooth Low Energy)

  • RTC

  • Segger RTT (RTT Console)

  • SPI

  • UART

  • WDT

Hardware

  • nRF52832 ARM Cortex-M4F processor at 64 MHz

  • 512 KB flash memory and 64 KB of SRAM

  • Bosch BMI270 IMU

  • Sensiron SHT30 Humidity and Temperature sensor

  • Murata PKLCS1212E4001R1 Piezo Buzzer

  • Battery connector and charger for 3.7 V lithium polymer batteries

  • 4 APA102C Addressable LEDs

  • Reset button (can be configured as user button)

  • 1 User button

  • Tag-Connect TC2030-FP 6-pin Debug Connector

Supported Features

The blueclover_plt_demo_v2 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Connections and IOs

Push buttons

  • RESET = P0.21

  • STATUS = P0.26

UART

  • TXD = P0.06

  • RXD = P0.08

Power

  • USB-C Connector

  • JST-PH Battery Connector

NFC

  • U.FL Connector, on NFC1/P0.09, NFC2/P0.10

Programming and Debugging

The blueclover_plt_demo_v2 board supports the runners and associated west commands listed below.

flash debug

Applications for the blueclover_plt_demo_v2/nrf52832 board configuration can be built and flashed in the usual way (see Building an Application and Run an Application for more details).

Flashing

Flashing Zephyr onto the blueclover_plt_demo_v2/nrf52832 board requires an external programmer. The programmer is attached to the SWD header.

Build the Zephyr kernel and the LED strip sample application.

west build -b blueclover_plt_demo_v2/nrf52832 samples/drivers/led/led_strip

Flash the image.

west build -b blueclover_plt_demo_v2/nrf52832 samples/drivers/led/led_strip
west flash
