STM32F4 Discovery

Overview

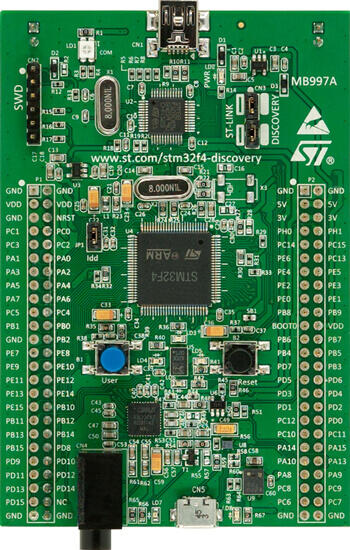

The STM32F4DISCOVERY Discovery kit features an ARM Cortex-M4 based STM32F407VG MCU with a wide range of connectivity support and configurations Here are some highlights of the STM32F4DISCOVERY board:

  • STM32 microcontroller in LQFP100 package

  • Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing

  • On-board ST-LINK/V2 debugger/programmer with SWD connector

  • Flexible board power supply:

    • USB VBUS or external source(3.3V, 5V, 7 - 12V)

    • Power management access point

  • Eight LEDs:

    • USB communication (LD1)

    • 3.3 V power on (LD2)

    • Four user LEDs: orange (LD3), green (LD4), red (LD5), and blue (LD6)

    • 2 USB OTG LEDs for VBUS (LD7) and over-current (LD8)

  • Two push-buttons: USER and RESET

  • USB OTG FS with micro-AB connector

  • LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer

  • MP45DT02 ST-MEMS audio sensor omni-directional digital microphone

  • CS43L22 audio DAC with integrated class D speaker driver

More information about the board can be found at the STM32F4DISCOVERY website.

Hardware

STM32F4DISCOVERY Discovery kit provides the following hardware components:

  • STM32F407VGT6 in LQFP100 package

  • ARM® 32-bit Cortex®-M4 CPU with FPU

  • 168 MHz max CPU frequency

  • VDD from 1.8 V to 3.6 V

  • 1 MB Flash

  • 192+4 KB SRAM including 64-Kbyte of core coupled memory

  • GPIO with external interrupt capability

  • 3x12-bit ADC with 24 channels

  • 2x12-bit D/A converters

  • RTC

  • Advanced-control Timer

  • General Purpose Timers (17)

  • Watchdog Timers (2)

  • USART/UART (6)

  • I2C (3)

  • SPI (3)

  • SDIO

  • 2xCAN

  • USB 2.0 OTG FS with on-chip PHY

  • USB 2.0 OTG HS/FS with dedicated DMA, on-chip full-speed PHY and ULPI

  • 10/100 Ethernet MAC with dedicated DMA

  • 8- to 14-bit parallel camera

  • CRC calculation unit

  • True random number generator

  • DMA Controller

More information about STM32F407VG can be found here:

Supported Features

The stm32f4_disco board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Note

CAN feature requires CAN transceiver, such as SK Pang CAN breakout board. Zephyr default configuration uses CAN_2 exclusively, as simultaneous use of CAN_1 and CAN_2 is not yet supported.

Pin Mapping

STM32F4DISCOVERY Discovery kit has 8 GPIO controllers. These controllers are responsible for pin muxing, input/output, pull-up, etc.

For more details please refer to STM32F4DISCOVERY board User Manual.

Default Zephyr Peripheral Mapping:

  • UART_2_TX : PA2

  • UART_2_RX : PA3

  • USER_PB : PA0

  • LD3 : PD13

  • LD4 : PD12

  • LD5 : PD14

  • LD6 : PD15

  • USB DM : PA11

  • USB DP : PA12

  • CAN2_RX : PB5

  • CAN2_TX : PB13

  • I2C1_SDA : PB9

  • I2C1_SCL : PB6

  • I2S3_MCK : PC7

  • I2S3_CK : PC10

  • I2S3_SD : PC12

  • I2S3_WS : PA4

System Clock

STM32F4DISCOVERY System Clock could be driven by internal or external oscillator, as well as main PLL clock. By default System clock is driven by PLL clock at 168MHz, driven by 8MHz high speed external clock.

Serial Port

STM32F4DISCOVERY Discovery kit has up to 6 UARTs. The Zephyr console output is assigned to UART2. Default settings are 115200 8N1. Please note that ST-Link Virtual Com Port is not wired to chip serial port. In order to enable console output you should use a serial cable and connect it to UART2 pins (PA2/PA3).

Programming and Debugging

The stm32f4_disco board supports the runners and associated west commands listed below.

flash debug

STM32F4DISCOVERY Discovery kit includes an ST-LINK/V2 embedded debug tool interface.

Applications for the stm32f4_disco board configuration can be built and flashed in the usual way (see Building an Application and Run an Application for more details).

Flashing

The board is configured to be flashed using west STM32CubeProgrammer runner, so its installation is required.

Alternatively, OpenOCD or JLink can also be used to flash the board using the --runner (or -r) option:

$ west flash --runner openocd
$ west flash --runner jlink

Flashing an application to STM32F4DISCOVERY

Here is an example for the Blinky application.

Run a serial host program to connect with your board:

$ minicom -D /dev/ttyACM0

Build and flash the application:

# From the root of the zephyr repository
west build -b stm32f4_disco samples/basic/blinky
west flash

You should see user led “LD4” blinking.

Debugging

You can debug an application in the usual way. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b stm32f4_disco samples/hello_world
west debug
