Open103Z

Overview

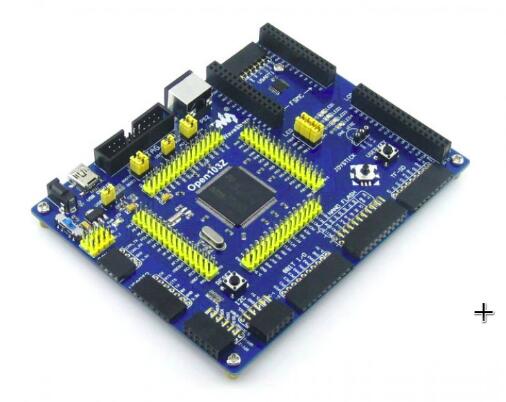

The Waveshare Open103Z-64 is a development board equipped with STM32F103ZE MCU.

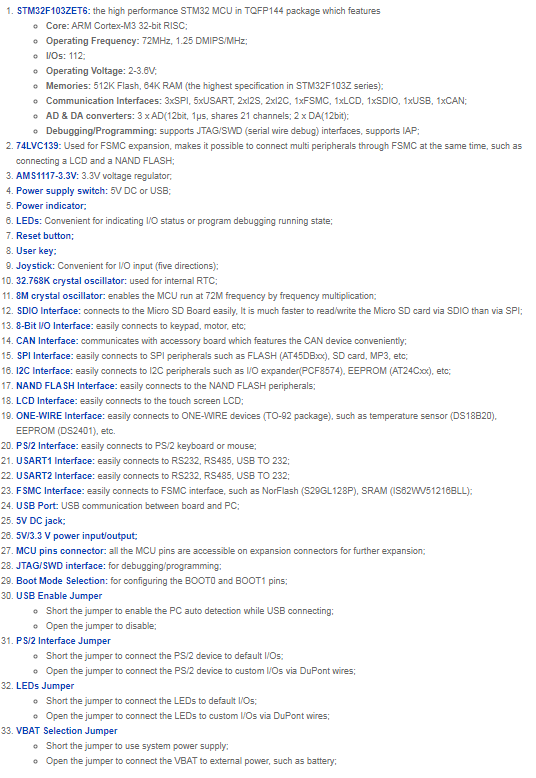

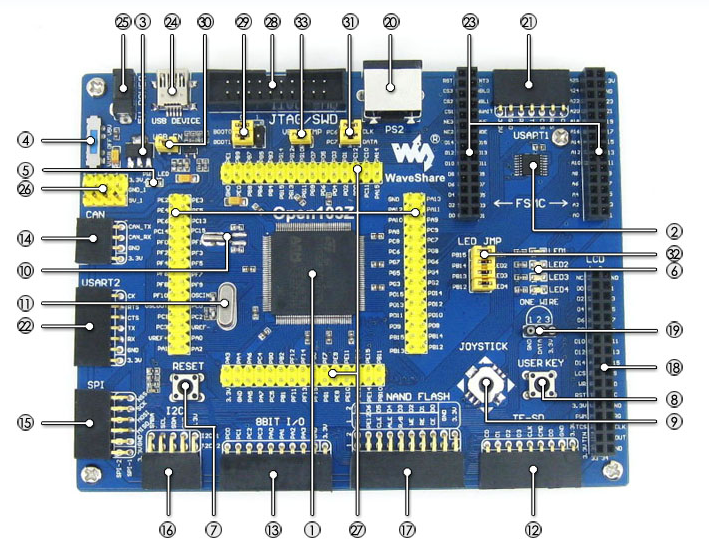

The Waveshare Open103Z provides the following hardware components:

The waveshare_open103z board supports the hardware features listed below.

on-chip / on-board: Feature integrated in the SoC / present on the board.
2 / 2: Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo: Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

The waveshare_open103z board supports the runners and associated west commands listed below.

	flash	debug

Applications for the waveshare_open103z board configuration can be built and flashed in the usual way.

Build and flash applications as usual. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b waveshare_open103z samples/hello_world
west flash

Debug applications as usual. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b waveshare_open103z samples/hello_world
west debug
