Capacitive Touch Evaluation System for RA2L1

Overview

The RA2L1 MCU Group Capacitive Touch Evaluation System (RTK0EG0022S01001BJ) is a kit created for evaluating the RA2L1 MCU Group Capacitive Touch Sensing Unit (CTSU).

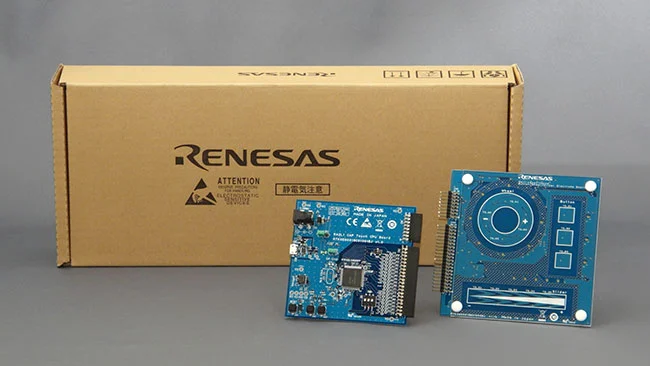

RTK0EG0022S01001BJ is composed of two boards: The RA2L1 Cap Touch CPU Board is mounted with an RA2L1 MCU which includes an on-chip CTSU. The Capacitive Touch Application Board Capacitive Touch Application Board is equipped with self-capacitance touch buttons, wheel and slider electrodes, and LEDs touch electrodes.

Renesas RA2L1 Microcontroller Group has following features

  • 48MHz, Arm Cortex-M23 core

  • 256kB or 128kB Code Flash, 8kB Data Flash, 32kB SRAM (divided on 2 equal areas with- and without- ECC support)

  • SCI x 5

  • SPI x 2

  • I2C x 2

  • CAN x 1

  • 12-bit A/D Converter

  • 12-bit D/A Converter

  • Low-Power Analog Comparator x 2

  • Temperature Sensor

  • General PWM Timer 32-bit x 4

  • General PWM Timer 16-bit x 6

  • Low Power Asynchronous General-Purpose Timer x 2

  • Watchdog Timer (WDT)

  • Independent Watchdog Timer (IWDT)

  • Up to 85 Input/Output pins (depends on the package type)

Hardware

The main functions of the RA2L1 Cap Touch CPU board are as follows:

  • Renesas RA2L1 MCU Group

    • R7FA2L1AB2DFP

    • 100-pin LFQFP package

    • 48MHz Arm Cortex®-M23 Core with built-in Arm® MPU (Armv8-M architecture)

    • 32KB SRAM

    • 256KB code flash memory

    • 8KB data flash memory

    • 32-channel capacitive touch sensing unit (CTSU) pins

  • Connectivity

    • USB serial conversion interface (FT234XD manufactured by FTDI)

    • 10-pin JTAG/SWD interface for connecting external debugger or programmer (option)

    • Application board GPIO interface: 2.54mm pitch, 16 pins (8 x 2 DIL)

    • Application board CTSU interface: 2.54mm pitch, 40 pins (20 x 2 DIL)

  • Other functions

    • MCU current measurement jumper

    • User push button switches: 2

    • User LEDs: 2

../../../../_images/rtk0eg0018c01001bj.webp

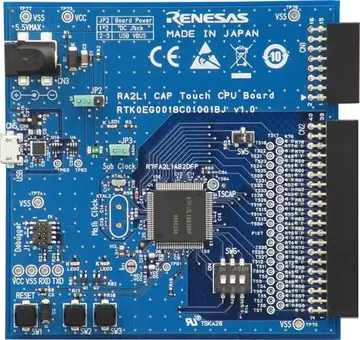

RA2L1 Cap Touch CPU Board (Credit: Renesas Electronics Corporation)

Key functions of the Capacitive Touch Application Board are as follows:

  • Self-capacitance detection touch electrodes

    • Buttons: 3

    • Wheel (4-electrode configuration): 1

    • Slider (5-electrode configuration): 1

  • LEDs: 16

Supported Features

The rssk_ra2l1 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and debugging

Building & Flashing

You can build and flash an application with an external J-Link debug adapter connect to J1 connector. Building an Application and Run an Application for more details.

Here is an example for building and flashing the Blinky application.

# From the root of the zephyr repository
west build -b rssk_ra2l1 samples/basic/blinky
west flash

Debugging

Debugging also can be done with an external J-Link debug adapter connected to J1 connector. For the debug log output through UART console, you need to connect a USB cable from the host PC to the USB Serial Conversion on CN5. The following command is debugging the Blinky application. Also, see the instructions specific to the debug server that you use.

# From the root of the zephyr repository
west build -b rssk_ra2l1 samples/basic/blinky
west debug

Or you can use Segger Ozone (Segger Ozone Download) for a visual debug interface

Once downloaded and installed, open Segger Ozone and configure the debug project like so:

  • Target Device: R7FA2L1AB

  • Target Interface: SWD

  • Target Interface Speed: 4 MHz

  • Host Interface: USB

  • Program File: <path/to/your/build/zephyr.elf>
