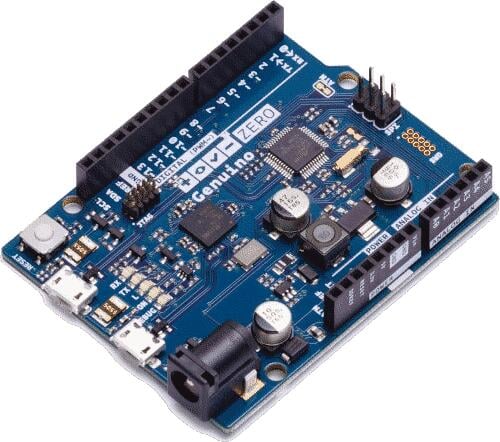

Arduino/Genuino Zero

Overview

The Arduino Zero is a maker-friendly development board with Atmel’s Embedded Debugger (EDBG), which provides a full debug interface without the need for additional hardware.

Hardware

  • ATSAMD21G18A ARM Cortex-M0+ processor at 48 MHz

  • 32.768 kHz crystal oscillator

  • 256 KiB flash memory and 32 KiB of RAM

  • 3 user LEDs

  • One reset button

  • On-board USB based EDBG unit with serial console

  • Native USB port

Supported Features

The arduino_zero board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Connections and IOs

The Arduino store [1] has detailed information about board connections. Download the Arduino Zero Schematic [2] for more detail.

System Clock

The SAMD21 MCU is configured to use the 32.768 kHz external oscillator with the on-chip PLL generating the 48 MHz system clock. The internal APB and GCLK unit are set up in the same way as the upstream Arduino libraries.

Serial Port

The SAMD21 MCU has 6 SERCOM based USARTs. One of the USARTs (SERCOM5) is connected to the onboard Atmel Embedded Debugger (EDBG). SERCOM0 is available on the D0/D1 pins.

PWM

The SAMD21 MCU has 3 TCC based PWM units with up to 4 outputs each and a period of 24 bits or 16 bits. If CONFIG_PWM_SAM0_TCC is enabled then LED0 is driven by TCC2 instead of by GPIO.

SPI Port

The SAMD21 MCU has 6 SERCOM based SPIs. On the Arduino Zero, SERCOM4 is available on the 6 pin connector at the edge of the board.

USB Device Port

The SAMD21 MCU has a USB device port that can be used to communicate with a host PC. See the USB sample applications for more, such as the USB CDC ACM UART sample sample which sets up a virtual serial port that echos characters back to the host PC.

DAC

The SAMD21 MCU has a single channel DAC with 10 bits of resolution. On the Arduino Zero, the DAC is available on pin A0.

Programming and Debugging

The arduino_zero board supports the runners and associated west commands listed below.

flash debug

The Arduino Zero comes with a Atmel Embedded Debugger (EDBG). This provides a debug interface to the SAMD21 chip and is supported by OpenOCD.

Flashing

  1. Build the Zephyr kernel and the Hello World sample application:

    west build -b arduino_zero samples/hello_world

  2. Connect the Arduino Zero to your host computer using the USB debug port.

  3. Run your favorite terminal program to listen for output. Under Linux the terminal should be /dev/ttyACM0. For example:

    $ minicom -D /dev/ttyACM0 -o

    The -o option tells minicom not to send the modem initialization string. Connection should be configured as follows:

    • Speed: 115200

    • Data: 8 bits

    • Parity: None

    • Stop bits: 1

  4. To flash an image:

    west build -b arduino_zero samples/hello_world
west flash

    You should see “Hello World! arduino_zero” in your terminal.
