RTS5912 Evaluation Board

Overview

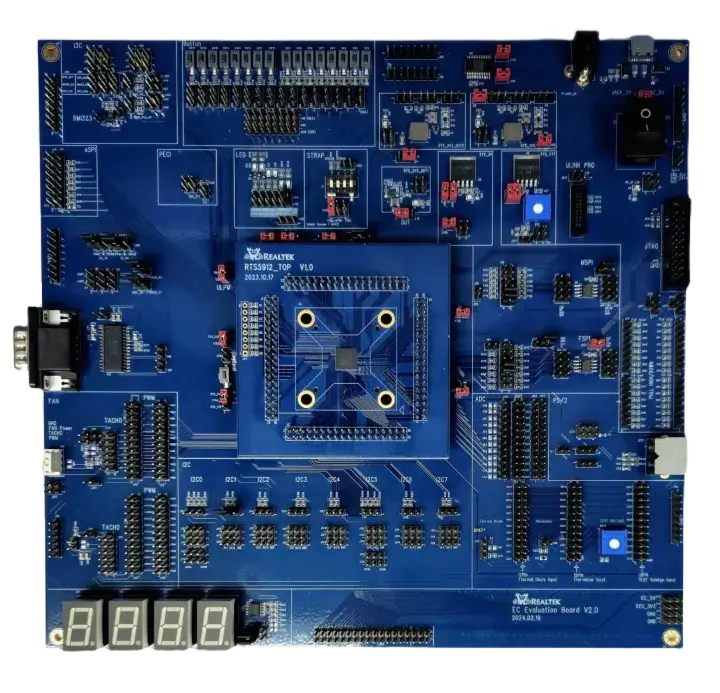

The RTS5912 EVB is a development platform to evaluate the Realtek RTS5912 embedded controller.

Hardware

  • Realtek-M300 Processor (compatible to Cortex-M33)

  • Memory:

    • 384 KB SRAM

    • 64 KB ROM

    • 512 KB Flash(MCM)

    • 256 B Battery SRAM

  • PECI interface 3.1

  • FAN, PWM and TACHO pins

  • 6x I2C instances

  • eSPI header

  • 1x PS/2 ports

  • Keyboard interface headers

For more information about the evb board please see RTS5912_EVB_Schematics [1] and RTS5912_DATASHEET [2]

The board is powered through the +5V USB Type-C connector or adaptor.

Supported Features

The rts5912_evb board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and Debugging

The rts5912_evb board supports the runners and associated west commands listed below.

flash debug

Building

  1. Build Hello World application as you would normally do.

  2. The file zephyr.rts5912.bin will be created if the build system can build successfully. This binary image can be found under file “build/zephyr/”.

Flashing

  1. Connect Dediprog into header J81 and J82.

  2. Use Dediprog SF600 programmer to write the binary into the external flash U10 at the address 0x0.

  3. Power off the board.

  4. Set the strap pin GPIO108 to high and power on the board.

Debugging

Using SWD or JTAG with ULINPRO.
