BeagleBadge

Overview

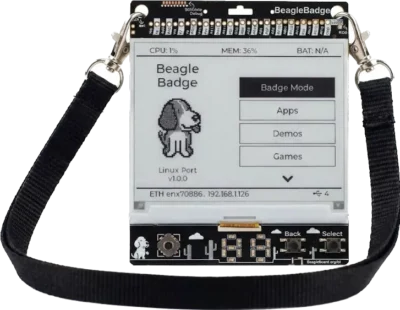

BeagleBoard.org BeagleBadge brings a new vision to wearables by combining powerful built-in sensing with unmatched expansion flexibility. Based on a TI Sitara AM62L dual-core ARM Cortex-A53 SoC

See the BeagleBoard.org BeagleBadge Product Page for details.

Hardware

  • Processor

    • TI Sitara AM62L SoC with 2x ARM Cortex-A53

  • Memory

    • 256MB LPDDR4

    • 256Mb OSPI flash

    • 32Kb EEPROM

  • Wireless connectivity

    • BeagleMod CC3301-1216 Module WiFi6 (2.4GHz)

    • Bluetooth 5.2 with MHF4 Connector

    • LoRaWAN (Wio SX1262 module) with u.FL Connector

  • Built-in Sensors

    • 1x IMU Sensor

    • 1x Ambient light sensor

    • 1x Temperature & humidity sensor

  • User interface

    • 4.2″ ePaper Display

    • 1x 4-way Joystick button with press

    • 2x Tactile buttons (Back and Select)

    • 1x Passive Buzzer

    • 1x RGB status LED

    • 2x 7-segment LED displays

  • Expansion

    • MIPI DSI connector for LCD displays

    • USB Type-C for Power input and debug

    • 1x mikroBus Connector

    • 1x USB2.0 Type-A host

    • 1x Micro-SD socket

    • 2x QWIIC Connector

    • 1x Grove Connector

Supported Features

The beaglebadge board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Devices

Serial Port

This board configuration uses a single serial communication channel with the MAIN domain UART (main_uart0).

SD Card

Build the AM62L SDK as described here Building the SDK with Yocto using MACHINE=beaglebadge-ti. Flash the resulting WIC file with an etching software onto an SD card.

Build Zephyr, for example build the Hello World sample with the following command:

# From the root of the zephyr repository
west build -b beaglebadge/am62l3/a53 samples/hello_world

This builds the program and the binary is present in the build/zephyr directory as zephyr.bin.

Copy the compiled zephyr.bin to the first FAT partition of the SD card and plug the SD card into the board. Power it up and stop the U-Boot execution at prompt.

Use U-Boot to load and start zephyr.bin:

fatload mmc 1:1 0x82000000 zephyr.bin; dcache flush; icache flush; dcache off; icache off; go 0x82000000

The Zephyr application should start running on the A53 cores.

Debugging

The board is equipped with JTAG exposed over an edge SOICbite connector.
