Beetle RP2350

Overview

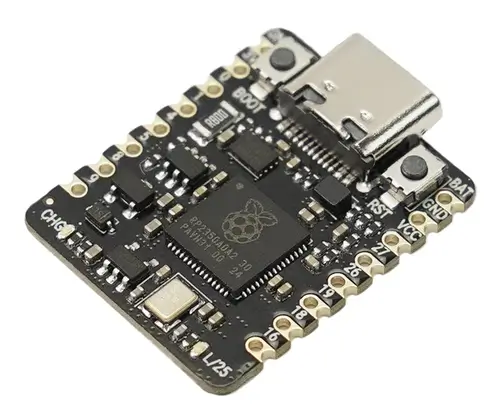

The DFRobot Beetle RP2350 [1] board is based on the RP2350A microcontroller from Raspberry Pi Ltd. The board has two 8-pin headers and a USB type C connector.

Hardware

  • Microcontroller Raspberry Pi RP2350A, with a max frequency of 150 MHz

  • Dual ARM Cortex M33 cores, and dual RISC-V Hazard3 cores.

  • 520 kByte SRAM

  • 2 Mbyte QSPI flash

  • 9 GPIO pins

  • 2 ADC pins

  • I2C

  • UART

  • SPI

  • USB type C connector

  • Lithium battery charger

  • Reset and boot buttons

  • User LED

Default Zephyr Peripheral Mapping

Description

Pin

Comments

User LED

GPIO25

Alias led0

GPIO header:

Label

Pin

Default pin mux

0

GPIO0

UART0 TX

1

GPIO1

UART0 RX

4

GPIO4

I2C0 SDA

5

GPIO5

I2C0 SCL

8

GPIO8

9

GPIO9

16

GPIO16

SPI0 MISO

18

GPIO18

SPI0 SCK

19

GPIO19

SPI0 MOSI

26

GPIO26

ADC0

27

GPIO27

ADC1

See also pinout [2] and schematic [3].

Supported Features

The beetle_rp2350 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and Debugging

The beetle_rp2350 board supports the runners and associated west commands listed below.

flash debug

By default programming is done via the USB connector. Press and hold the BOOT button, and then press the RST button, and the device will appear as a USB mass storage unit. Building your application will result in a build/zephyr/zephyr.uf2 file. Drag and drop the file to the USB mass storage unit, and the board will be reprogrammed.

It is also possible to program and debug the board via the SWDIO and SWCLK pins in the DEBUG connector. You must solder a 3-pin or 4-pin header to the back of the board in order to use this feature. A separate programming hardware tool is required, and for example the openocd software is used. You might need to use Raspberry Pi’s forked version of OpenOCD. Typically the OPENOCD and OPENOCD_DEFAULT_PATH values should be set when building, and the --runner openocd argument should be used when flashing. For more details on programming RP2040-based and RP2350-based boards, see Programming and Debugging.

Flashing the M33 core

To run the Blinky sample:

# From the root of the zephyr repository
west build -b beetle_rp2350/rp2350a/m33 samples/basic/blinky/
west flash

Try also the Hello World and Analog-to-Digital Converter (ADC) with devicetree samples.

Use the shell to control the GPIO pins:

# From the root of the zephyr repository
west build -b beetle_rp2350/rp2350a/m33 samples/sensor/sensor_shell -- -DCONFIG_GPIO=y -DCONFIG_GPIO_SHELL=y
west flash

To set one of the GPIO pins high, use these commands in the shell:

gpio conf gpio0 8 o
gpio set gpio0 8 1

Flashing the Hazard3 core

The RP2350A microcontroller has two ARM M33 cores and two RISC-V Hazard3 cores. To flash one of the Hazard3 cores, use the board argument beetle_rp2350/rp2350a/hazard3. The sample Blinky has been verified for this core. Use the USB mass storage programming method described above.
