W6100-EVB-Pico2

Overview

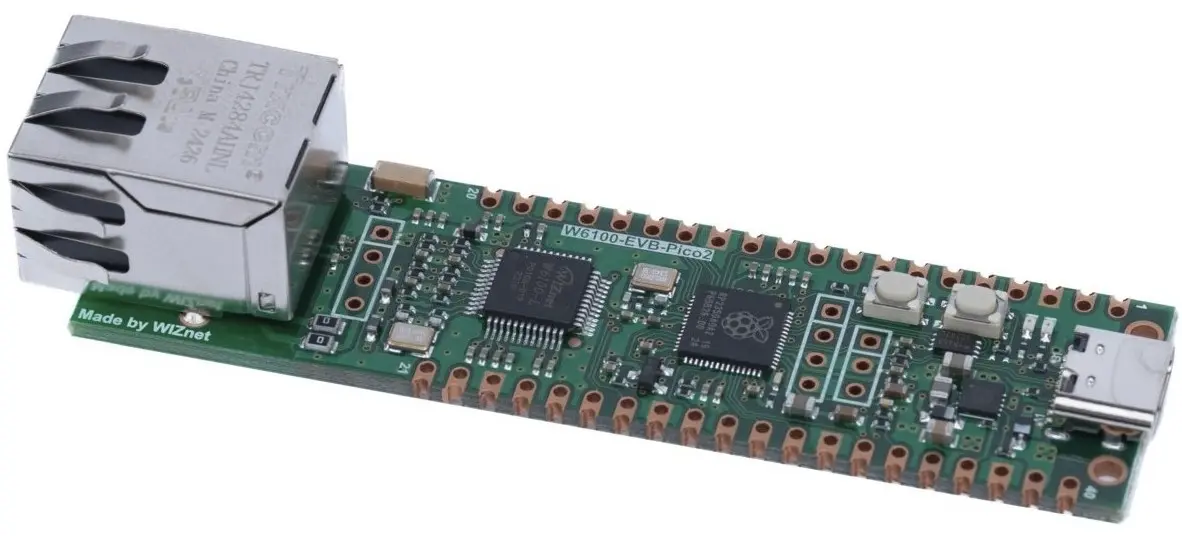

W6100-EVB-Pico2 is a microcontroller evaluation board based on the Raspberry Pi RP2350A and fully hardwired TCP/IP controller W6100 - and basically works the same as Raspberry Pi Pico 2 board but with additional Ethernet via W6100. The USB bootloader allows the ability to flash without any adapter, in a drag-and-drop manner. It is also possible to flash and debug the boards with their SWD interface, using an external adapter.

Hardware

  • Dual core Arm Cortex-M33 or Hazard3 processor running up to 150MHz

  • 520KB on-chip SRAM

  • 2MB on-board QSPI flash with XIP capabilities

  • 26 GPIO pins

  • 3 Analog inputs

  • 2 UART peripherals

  • 2 SPI controllers

  • 2 I2C controllers

  • 24 PWM channels

  • USB 1.1 controller (host/device)

  • 3 Programmable IO (PIO) blocks, 12 state machines total

  • On-board LED

  • 1 Watchdog timer peripheral

  • 1 HSTX pheripheral

  • Wiznet W6100 Ethernet MAC/PHY

Supported Features

The w6100_evb_pico2 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Pin Mapping

The peripherals of the RP2350A SoC can be routed to various pins on the board. The configuration of these routes can be modified through DTS. Please refer to the datasheet to see the possible routings for each peripheral.

External pin mapping on the W6100_EVB_PICO2 is identical to the Raspberry Pi Pico 2. Since GPIO 25 is routed to the on-board LED on, similar to the Raspberry Pi Pico, the blinky example works as intended. GPIO 29 (ADC_CH3) is connected internally to measure VSYS/3. The W6100 is routed to the SPI0 (P16-P19), with the reset and interrupt signal for the W6100 routed to P20 and P21, respectively. All of these are shared with the edge connector on the board.

Refer to W6100 Evaluation Board Pico 2 Documentation [1] for a board schematic and other certifications.

Default Zephyr Peripheral Mapping:

  • UART0_TX : P0

  • UART0_RX : P1

  • I2C0_SDA : P4

  • I2C0_SCL : P5

  • I2C1_SDA : P14

  • I2C1_SCL : P15

  • SPI0_RX : P16

  • SPI0_CSN : P17

  • SPI0_SCK : P18

  • SPI0_TX : P19

  • W6100 Reset : P20

  • W6100 Interrupt : P21

  • ADC_CH0 : P26

  • ADC_CH1 : P27

  • ADC_CH2 : P28

  • ADC_CH3 : P29

Programming and Debugging

The w6100_evb_pico2 board supports the runners and associated west commands listed below.

flash debug

Note

The OpenOCD version bundled with the Zephyr SDK does not currently support the RP2350. To debug this board, use the Raspberry Pi OpenOCD fork or an external debug probe such as Segger J-Link.

The overall explanation regarding flashing and debugging is the same as for the Raspberry Pi Pico. See Programming and Debugging in the Raspberry Pi Pico documentation.

Below is an example of building and flashing the Blinky application.

# From the root of the zephyr repository
west build -b w6100_evb_pico2/rp2350a/m33 samples/basic/blinky
west flash --openocd /usr/local/bin/openocd
